Swift // ML our performance Carbon Mid-Length foil board
Dont let conditions hold you back
Have more fun riding your
Swift // ML Carbon Mid-Length foil board
SWIFT // ML
Mid - Length foil Board shown ML 80L in Pink / Blue and ML 95L in yellow / grey
The SWIFT // ML Mid-Length foil board is designed to make the most of every session.
100% carbon fibre laminate
100% carbon epoxy construction keeps weight to a minimum while providing the strongest stiffest platform.
Shape to suit
Whether your focus is on wave riding or light wind winging we are able to build a Mid-Length foil board suit your application.
Hydrodynamic efficiency
Design focused on efficiency, optimizing the length to width ratio to reduce the amount of effort required to get up on foil.

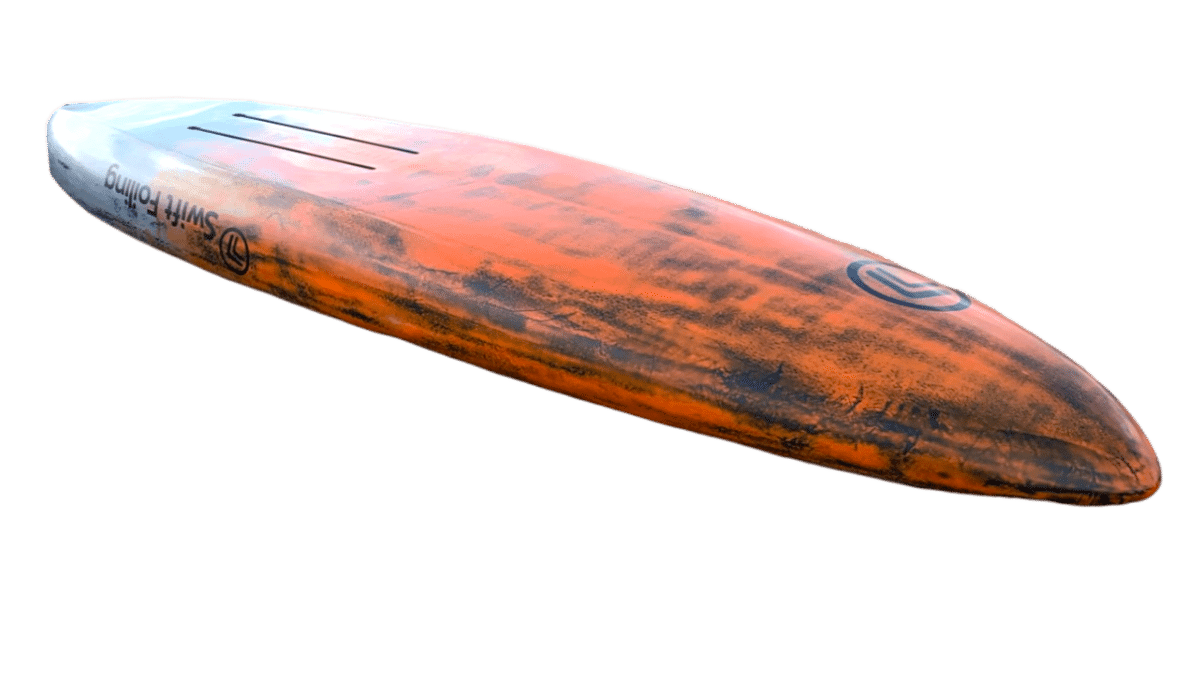

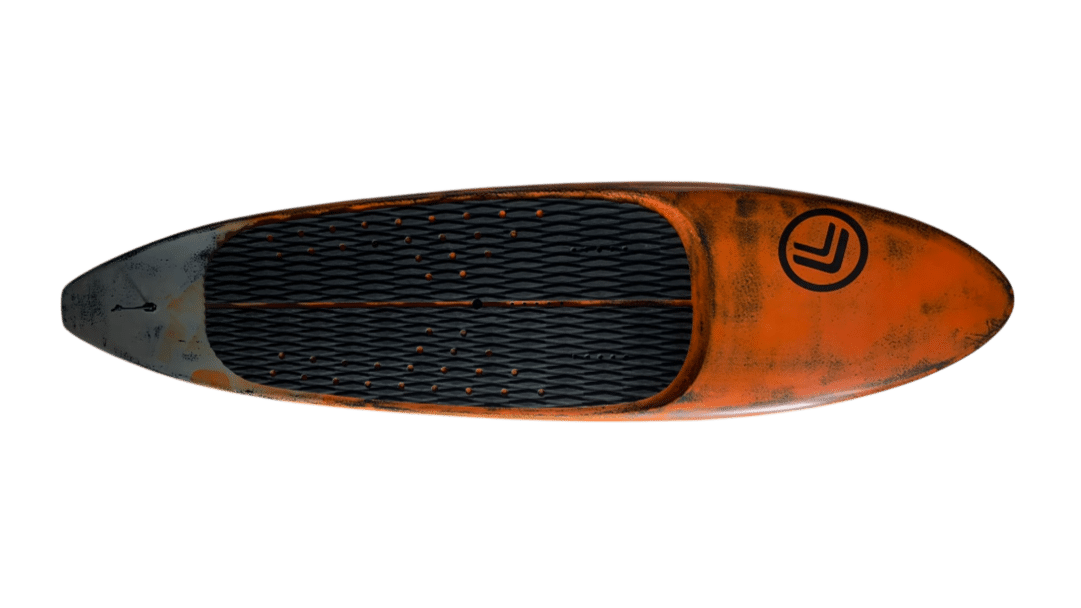

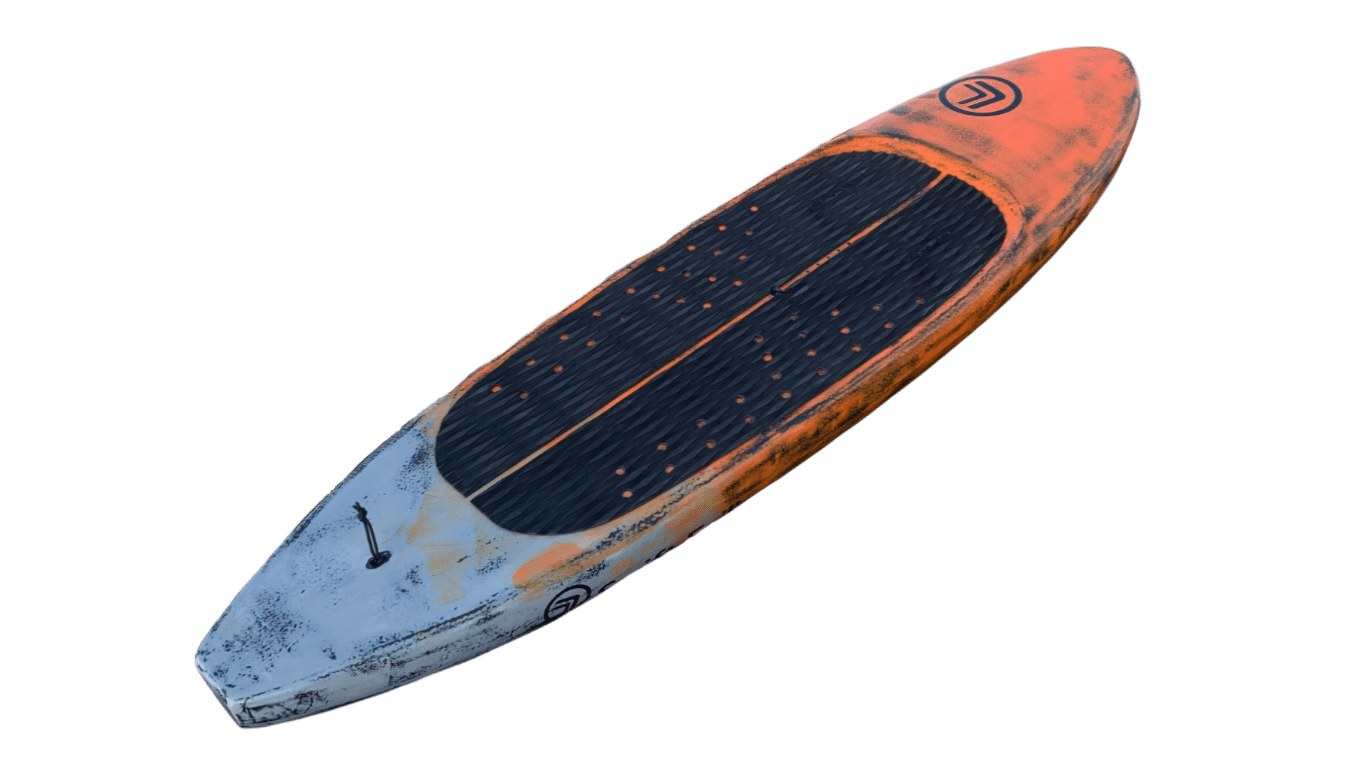

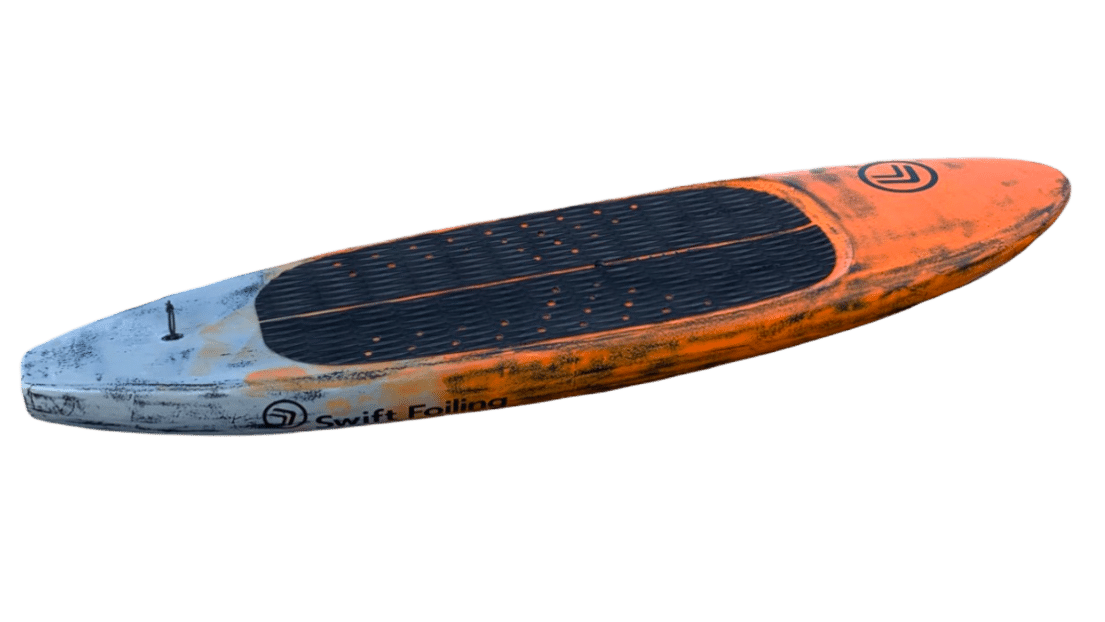

3D view
SWIFT // ML
The Mid-Length Foil Board shown is DW 6'4" x 20" x 95L
"The acceleration before take off is nuts. Defo able to drop a wing or foil size in any given wind"
Kevin Sadler
Hayling seafront
Prototype review...
The details
SWIFT // ML our Mid-Length foil board is built to order
Unlike the mass-producers, we cut each board individually and will customise details and dimensions to suit you.
Swift // ML
ML 80L
Volume
80 litres
Size
6' 0" x 18"
£ 1675
ML 95L
Volume
95 litres
Size
6'4" x 20"
£ 1675
ML 110L
Volume
110 litres
Size
6'8" x 21"
£ 1725
ML 130L
Volume
130 litres
Size
6'10" x 22"
£ 1725
Dimensions can be adjusted to best suit you
Built with 100% carbon & epoxy laminate
A key design focus was weight. As such the SWIFT //ML our Mid – Length foil board range is built with 100% carbon fibre and epoxy laminate as standard. We use a vacuum epoxy construction to maximize the fibre to resin ratio further increasing the strength to weight ratio of the laminate .
Mid - Length foil board ML 95L in Blue / white split colour, added foot strap inserts, 10.75" tracks and a handle add to the bottom
Finished in a super hard polished epoxy.
Unlike the big brands, we do not use fillers and paint which can easily chip and scratch. We pigment the epoxy with your chosen colour and finish with a clear epoxy gloss coat. This creates the most durable finish possible.
or customise with your own colour scheme
Choose from a range of single, dual colour and fully custom multi colour styles.
Fitted with16" Chinook Tracks as standard
Whatever your riding style or foil selection, 16” tracks gives more than enough adjustability to position your mast exactly where it suits you. With our internal board structure, we have created one of the strongest foil boxes on the market. This provides you, the rider, with that ultra rigid and connected feel.
Tech details
All our Mid-Length foil boards are built using an epoxy vacuum construction. Epoxies have superior strength compared to cheaper alternative polyester resins so it was an easy decision for us to make.
Vacuum bagging boards during lamination applies an even pressure over the surface which allows us to achieve a greater fibre density within the resin matrix, resulting in a stronger, lighter board.
Our Mid-Length foil boards are laminated with 100% carbon fibre.
Carbon fibre has an excellent strength to weight ratio having a low density, high tensile strength and a high Young’s Modulus (stiffness). With prone boards being so thin the stiffness must be provided by the laminate and so 100% carbon construction is necessary to create a strong and rigid yet lightweight board.
We pigment the epoxy during construction rather than painting our boards. Unlike others, you can clearly see we are not using paint to cover up fillers! This also helps keep the weight down and gives a more durable finish that wont scratch off when you put the board down on the beach.
Each board is sanded by hand. This makes each board unique and one of a kind.
We then finish with a clear UV stabilised epoxy gloss coat polished to a shine.
All our Mid-Length foil boards are designed on specialist computer aided design software. This defines the shape and allows us to understand the hydrodynamics including drag, centre of buoyancy and volume distribution. We can prototype new shapes quickly and adjust the design for the optimum board – we go from a concept to a test board within a week which gives us a fantastic feedback cycle to ensure we develop quickly. Using CNC machining we get great accuracy and repeatability of profiles that you could not get from hand shaping.
The foil Box is the most highly stressed point on the board and as such required us to design and engineer a solution to handle these loads.
We manufactured multiple inserts to transfer these high loads though the board and further strengthened this area with carbon.
We are proud to say we have never had a foil box rip out or fail and believe we have created one of the strongest on the market.
A ‘Gore’ self venting plug is fitted. This prevents the building of pressure within the board, caused by changes in core temperature or altitude when flying.
Dom's comments....
The ML 80L 6’0’’x18’’ Mid – Length has quickly become my go to wing board. Light wind sessions are no longer ruled by the fear of the wind dropping and the thoughts of the long swim in. The added advantage of allowing me to go out with smaller foils and wings than I previously could makes it a no brainer for most sessions. (For context I am 65kg)
The use of downwind boards for light wind winging opened up what conditions it was possible to go winging in. However, these boards really compromise your riding. The aim of the mid-length is to capture the advantage realized by downwind boards whilst minimizing the negative side effects. The mid length is tailored for winging striking a perfect balance, with great light wind performance whilst keeping that relatively small board feel.
Why buy Swift Foiling ?
QUALITY
With the big brands you are paying for cheap materials, freight from China, multiple reseller markups, and delivery miles. With SWIFT you are paying for quality materials - epoxy and carbon, producing solid builds that last. No markups - we sell direct to you.
RAPID INNOVATION
With the big brands it can take up to a year for product innovations to appear on a mainstream board. Swift products are continuously developed and every board is current
DEAL WITH THE DESIGNERS
When you buy direct, you deal with the people that design and build your board. If the wind is up, we are riding and testing every week of the year. We know what works.
See what others on the beach are saying...
